PioCreat 3D G5 Ultra 3D printer

Industrial Grade Precision

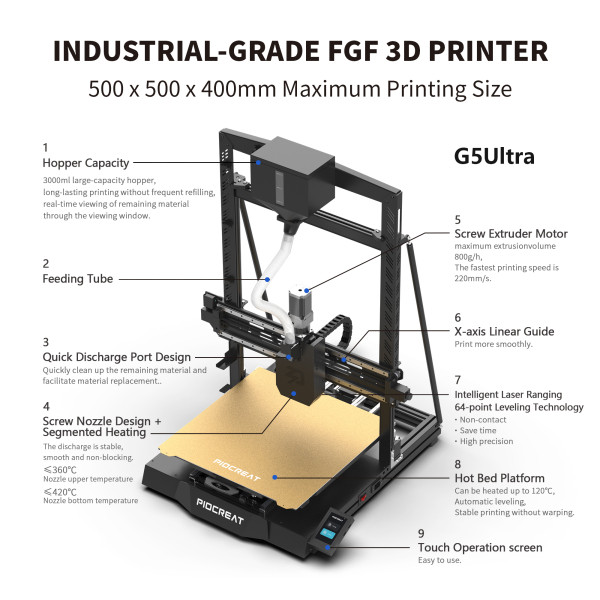

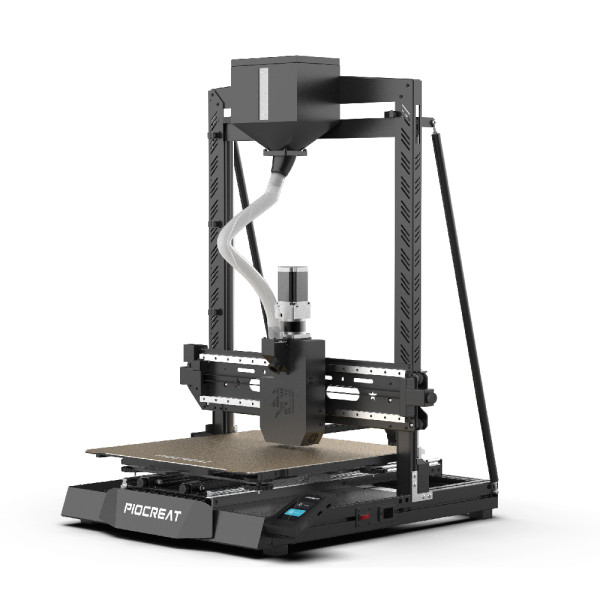

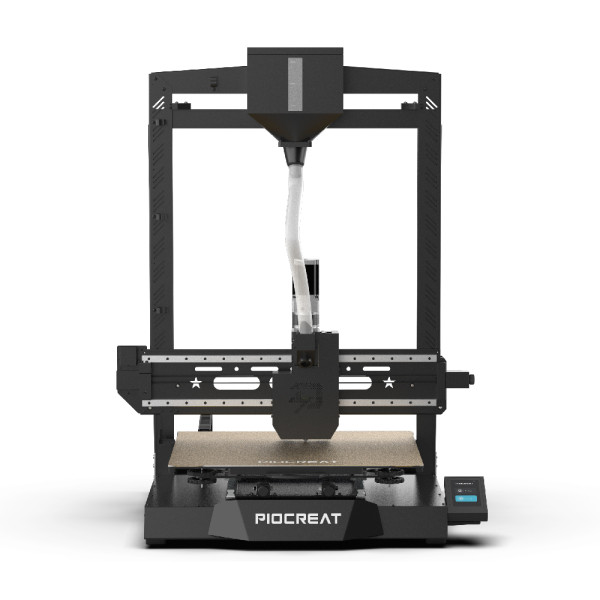

The G5Ultra pellet 3D printer by Piocreat represents a highly versatile and cost effective solution for industrial grade additive manufacturing. Designed with a compact footprint and a robust Cartesian structure, it provides a reliable and space efficient platform for large scale production. The printer features an extrusion temperature of up to 420 ºC, enabling compatibility with a wide range of high performance thermoplastic materials in pellet format. With a build volume of 500 x 500 x 400 mm, equivalent to 100 liters, the G5Ultra is capable of printing models weighing up to 25 kg, making it suitable for both prototyping and industrial applications.

Recycled Waste
A notable feature of the G5Ultra 3D printer is its ability to use shredded recycled plastic, processed to the correct diameter, contributing to sustainability and a circular economy. This reduces reliance on virgin materials, helping minimise waste and environmental impact. By repurposing plastic waste into valuable feedstock, the printer offers a cost effective, eco friendly solution without compromising print quality or performance.

Engineering Grade Materials

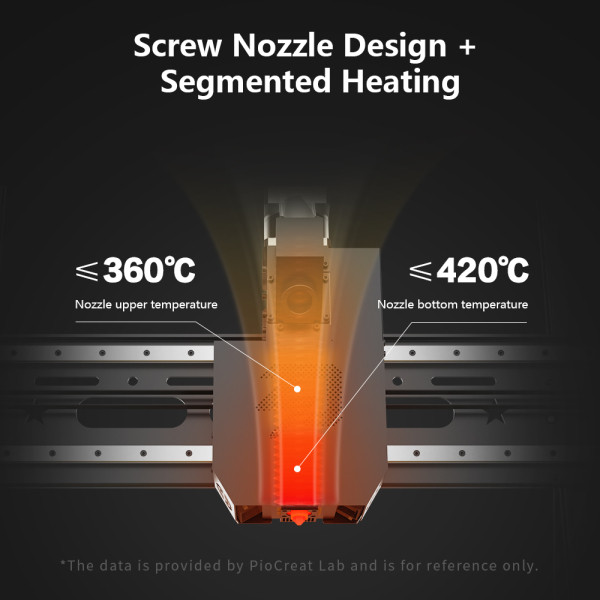

The G5Ultra is equipped with a high-quality screw extruder, which includes segmented heat zones for improved material processing. This segmented design consists of an upper zone with a maximum extrusion temperature of 360 ºC and a lower zone with a maximum extrusion temperature of 420 ºC. The printer also boasts a new generation nozzle that offers compatibility with a range of diameters, from 0.4 mm to 3.0 mm. Standard nozzle diameters are 0.8 mm, 1 mm, and 2 mm, catering to a wide range of print resolutions and speeds. The printer also features a quick discharge function, allowing users to rapidly purge remaining material and seamlessly switch to a new material, minimizing downtime and material waste.

Large Volume Hopper
For material handling, the G5Ultra is equipped with a 3-liter hopper, with a transparent window for easy material visibility. The printer also includes a material shortage alarm with a pop up reminder, ensuring that users are notified when material is running low. In addition, the resume function, powered by automatically stored printing records, allows the printer to continue printing from where it left off in case of an interruption, minimizing the risk of failed prints. With a printing success rate of over 95%, the G5Ultra is designed to operate reliably even in busy industrial environments, where precision and efficiency are paramount.

Intelligent Bed Levelling

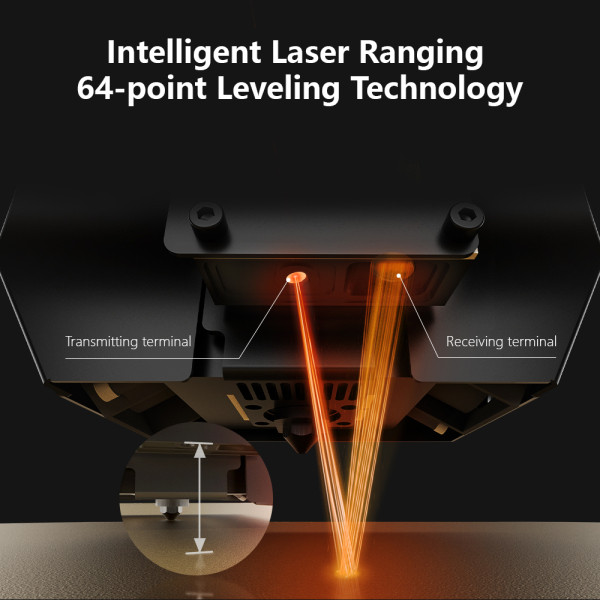

The G5Ultra's bed leveling system is one of its standout features, utilizing intelligent laser ranging with 64-point bed leveling technology. This laser sensor based, non contact measurement significantly reduces leveling time and enhances accuracy, ensuring that the printing surface is perfectly aligned for optimal print quality. The heated bed reaches temperatures up to 120 ºC, and it quickly heats to 60 ºC in just 5 minutes and to 90 ºC in 8 minutes. The PEI magnetic build platform is another innovation, allowing models to be easily removed thanks to its gentle bend, promoting efficiency and ease of use.

Connectivity Options
Connectivity options for the G5Ultra are also diverse, with support for USB disk file transfers and WiFi connectivity, making it easy to integrate into various workflows. Piocreat's proprietary laminating software, Piocreat Slicer, is included, though the printer is also compatible with third party software such as Cura and Simplify3D, offering flexibility to users who may prefer alternative slicing solutions. The user interface is available in 10 languages, ensuring accessibility for a global audience.

Flexibility
The G5Ultra was designed with the needs of a broad range of industries and applications in mind. It is particularly well suited for educational and academic research, design studios, and prototyping, where large-format, high-performance prints are often required. The printer excels in applications such as material testing, mold creation, industrial parts production, household items, craft supplies, and footwear manufacturing. With its advanced features, cost saving benefits, and high reliability, the G5Ultra by Piocreat is a game changer for those seeking an efficient, industrial grade FGF 3D printing solution.
