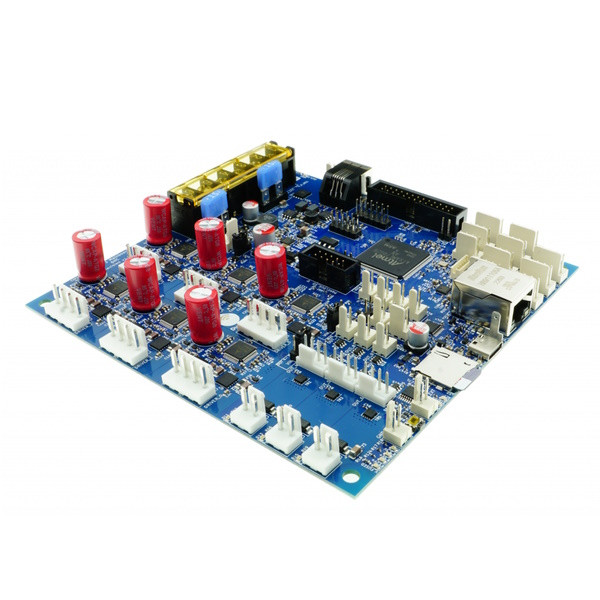

Duet3D | Duet 3 Mainboard 6HC v1.02 (Original)

The Duet 3 Mainboard 6HC is part of the latest generation of electronic boards and is seen as the core of the Duet 3 family!

Featuring 6 high-capacity Stepper Drivers, this powerful board provides control over 3D printers, CNCs, laser cutters and more. Thanks to the innovative RepRapFirmware 3 you benefit from advanced functions for maximum flexibility so that you have the freedom to assemble your 3D printer according to your own wishes.

Specifications:

• Powerful 32-bit processor
• Ethernet modules
• Extra quiet TMC2160/5160 stepper drivers, up to 256 micro steps
• Fast SD card reader
• Three heating channels for a heated bed and two extruder heaters
• Support for thermistors and PT1000 sensors connected directly to the Maestro along with Duet3D PT100 and thermocouple daughterboards
• Power: Each stepper motor is capable of delivering up to 6.3 A of peak motor current. The bed heating channel is specially designed for high current
• Connect via PC, tablet or smartphone on the same network to the web interface on board
• Firmware update possible via web interface
• All 3D printers are supported (Delta, Core XY, standard cartesian)
• Expandable to 4 extruders with firmware support for mixing hotends and remapping axes to use 2 powerful external drivers
• Support for the PanelDue: a graphical color LCD touch screen
• Support for a low cost 12864 display
