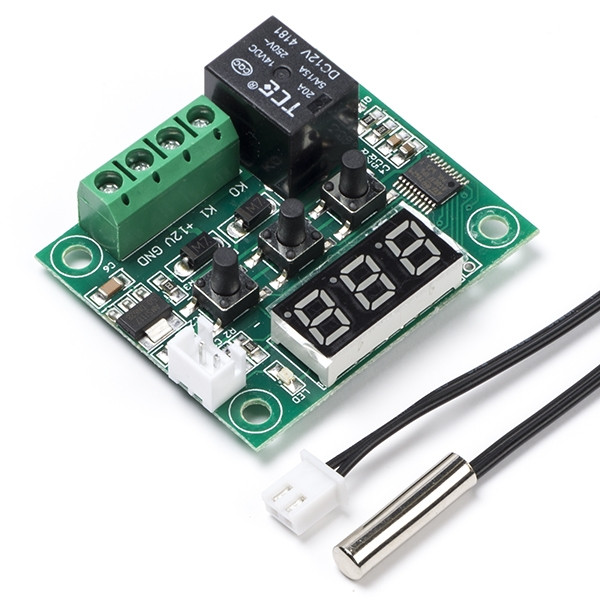

This thermostat plate is ideal for controlling a standalone heated bed. The board comes with a 10K thermistor and has a temperature range of -50°C to 110°C.
A long press on the Set button takes you to the menu of the thermostat. Below are the options of the menu:
| Code |
Description |
Range |
Factory setting |
| P0 |
heating / cooling |
C / H |
C |
| P1 |
hysteresis |
0.1 - 15 |
2 |
| P2 |
max temperature |
110 |
110 |
| P3 |
min. temperature |
-50 |
-50 |
| P4 |
temperature correction |
-7 ~ +7 |
0 |
| P5 |
start delay |
0-10 min |
0 |
| P6 |
high temperature alarm |
0 - 110 |
OFF |
You can load the factory settings by long pressing the + and - key.
