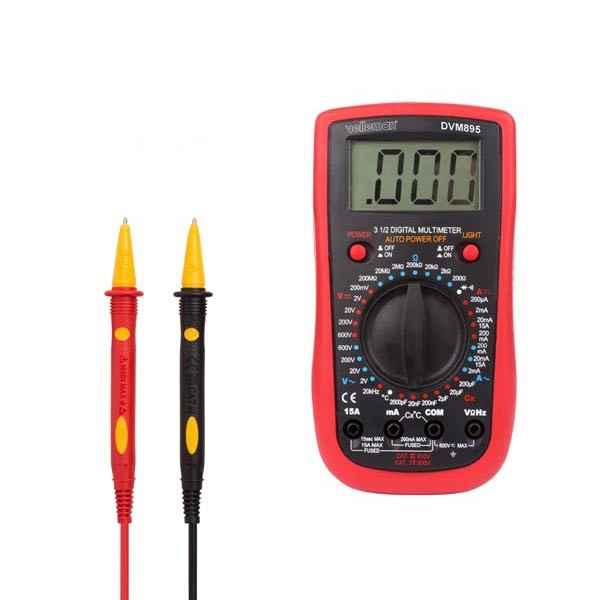

Velleman DVM895 digital multimeter

€46.50

€37.80 Excl. 23% VAT

EU warehouse

Description Specifications

Description

With this multimeter it is possible to make voltage, current, resistance, temperature, capacitance and frequency measurements.

Characteristics:

CAT III 600V / CAT IV 300V
automatic polarity indication
automatic zero setting
voltage measurements: 600 VAC and 600 VDC max.
current measurements: DC 15 A and AC 15 A max.
resistance measurements: 200 MOhm max.
capacitance measurements: 200 µF max.
measuring range K thermocouple: -50°C to 800°C
frequency measurements: 20 kHz
continuity buzzer: built-in buzzer sounds if resistance is less than 50 Ohm
test voltage: ± 3 V
diode measurement: measure forward diode voltage
test voltage: ± 3 V (DC reverse voltage)
out-of-range indication: yes
continuity buzzer: yes
diode test: yes
low battery indication: yes
max. display: 3 1/2
LCD display:
- dimensions: 62mm x 36mm
- digits: max. 1999
range setting: manual
data hold function: yes
backlight: yes
dimensions: 190mm x 100mm x 40 mm
weight (with battery): 300 g
power supply: 9V 6F22 (incl.)
automatic shutdown: yes
working environment: temperature: 0°C to 40°C (32 to 104°F)
humidity: < 80% (non-condensing)
storage environment:
- temperature: -20°C to 60°C (-4 to 140°F)
- humidity: < 90% (non-condensing)
fuse:
- F0.5A / 600V
- 5mm x 20mm F15A / 600V 5mm x 20mm
probe: CAT III 1000 V / CAT IV 600 V, 15 A, L = 75cm
IP Rating: IP20

Options

Manual (PDF)

Important Safety Information (PDF)

Specifications

Brand:	123-3D	Our item no:	DGS00016
Dimensions:	51 x 195 x 89 mm
