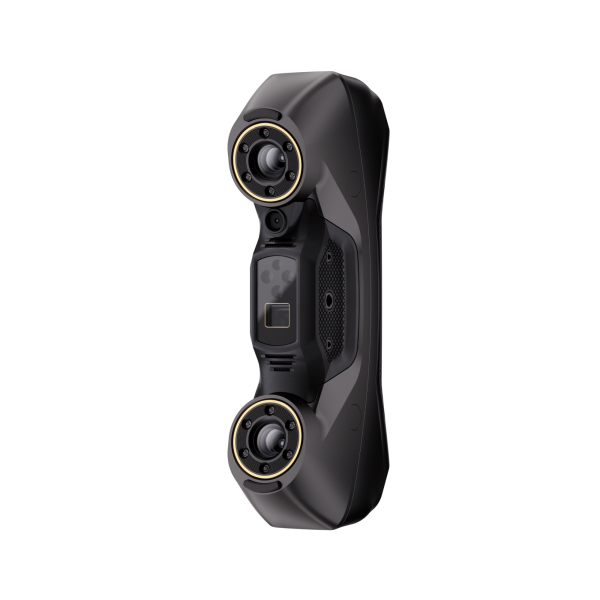

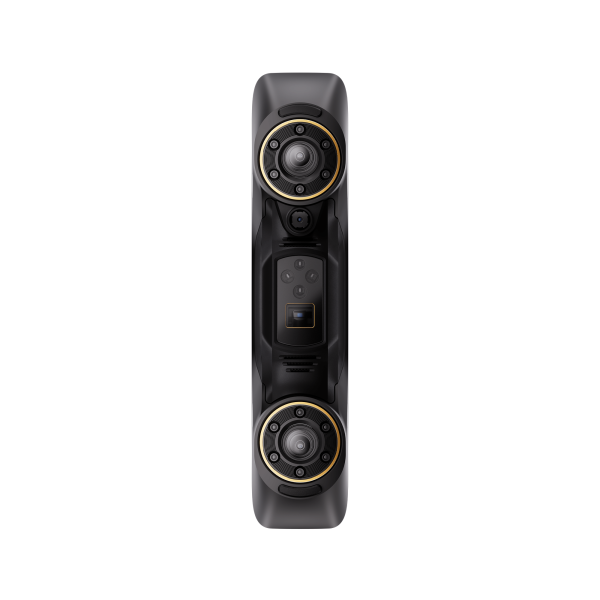

Revopoint Metro Y Pro 3D Scanner

€1,699.00 (coming soon)
€1,381.30 Excl. 23% VAT
Description Specifications
Description
The Revopoint MetroY is a powerful, industrial-grade blue laser 3D scanner for small to medium-sized objects, ideal for reverse engineering, quality control, prototyping, and 3D print preparation. With up to 0.01mm precision, wireless Wi-Fi, and real-time temperature monitoring, it delivers accurate and reliable scans without spray.

Key Features:
  • Volumetric accuracy: 0.02mm + 0.04mm × L (m)
  • Wireless scanning via Wi-Fi 6, plus USB-C connection
  • HD RGB texture display for vivid scanning results
Specifications
Brand: Revopoint Min scan volume:
Scan resolution: 0.05mm Max scan volume: 1M_1M_1M
Interested in ordering this product?
Precision & Scan Speed
The MetroY achieves impressive single-frame precision down to approximately 0.01 mm and a volumetric accuracy of 0.02 mm + 0.04 mm × L(m). Its maximum point rate is 1.5 million points per second in cross-line mode, enabling ultra-fast and highly accurate scanning.

Scan Technology & Mode Flexibility
Three blue laser scan modes:
  • Cross‑lines (30 lasers),
  • Parallel lines (15 lines),
  • Single-line – ideal for deeper holes or challenging surfaces.
Scans effortlessly through glossy, dark, or difficult-to-reflect surfaces without spraying.

Temperature Management & Reliability
Integrated temperature sensor technology prevents drift and ensures measurement stability – keeping performance consistent even over longer scanning sessions.
