MAHOR-XYZ V5 Pellet Extruder M8-PRO-HS

€1,149.00
€934.15 Excl. 23% VAT
EU warehouse
Description Specifications
Description

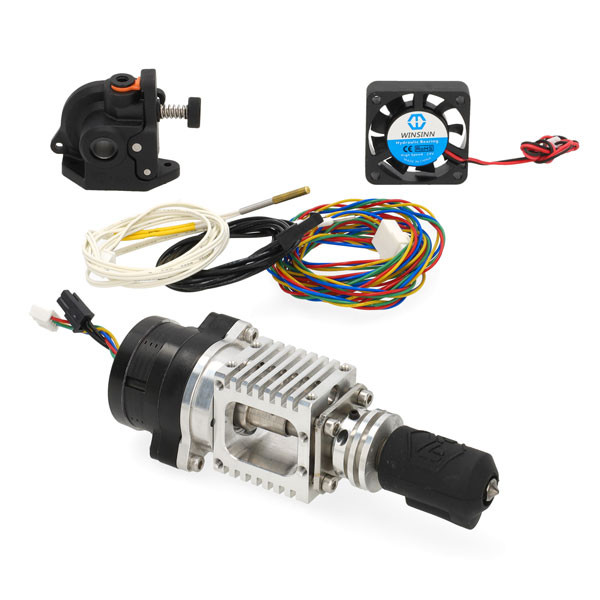

The MAHOR-XYZ V5 Pellet Extruder M8-PRO-HS is an industrial extruder specifically designed for processing pellets in demanding 3D printing applications. Its modular design, powerful drive system, and high-quality materials make this extruder ideal for users working with engineering or composite materials who require maximum reliability and control.

Key Features:
  • Modular platform structure with interchangeable hotend and motor types
  • Ceramic Heating Core (CHC) with 360° heat distribution and silicone insulation
  • High wear resistance due to hardened steel chamber and compression screw
Specifications
Brand: MAHOR-XYZ
Industrial performance for demanding applications
The M8-PRO-HS is equipped with a hardened steel chamber, which ensures high wear resistance and thermal stability. The hardened steel compression screw with integrated 8 mm coupling guarantees efficient power transmission and a long component life. These features make the extruder particularly suitable for processing high-performance and abrasive materials such as nylon, polycarbonate, and fiber-reinforced plastics.

Advanced heating technology
The Ceramic Heating Core (CHC) system provides even, 360° heat distribution around the hot end, resulting in consistent material extrusion. The included silicone sock improves thermal insulation and prevents heat loss, contributing to a stable and reliable printing process.

Powerful and precise drive
The extruder is equipped with a Nema 17 stepper motor with a 10:1 reduction gear, which ensures high torque and precise control over material flow. This configuration enables high-precision printing, even with complex geometries or when using materials with variable viscosity.
