Arduino DUE

€51.50 (Incl. 23% VAT)
(€41.87 Excl. 23% VAT)
5-7 day delivery
Description

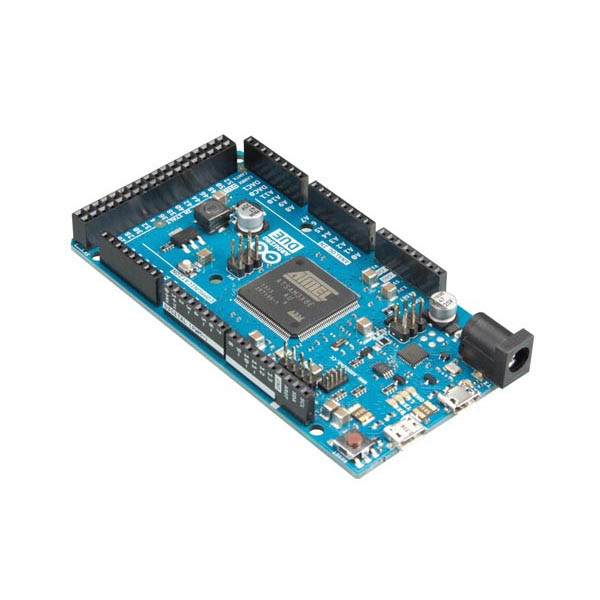

The Arduino DUE is a microcontroller board based on the 32-bit Atmel SAM3X8E ARM Cortex-M3 CPU. The board features 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 Mhz clock, a USB OTG connection, a power jack , an SPI header, a JTAG header, a reset button, and an erase button.

NOTE: the DUE operates at 3.3V. The maximum voltage on the I/O pins is therefore 3.3V. Higher voltages can damage the board.
Specifications
Hazard class: N/A Tunnel code: N/A
Brand: Arduino Packing group: NO
DC current for 3.3V pin: 800 ma Is liquid: no
Input voltage: 7 - 12V recommended Weight: 0.036 kg
Length : 101 mm Width: 53 mm
Our item no: DAR00000
