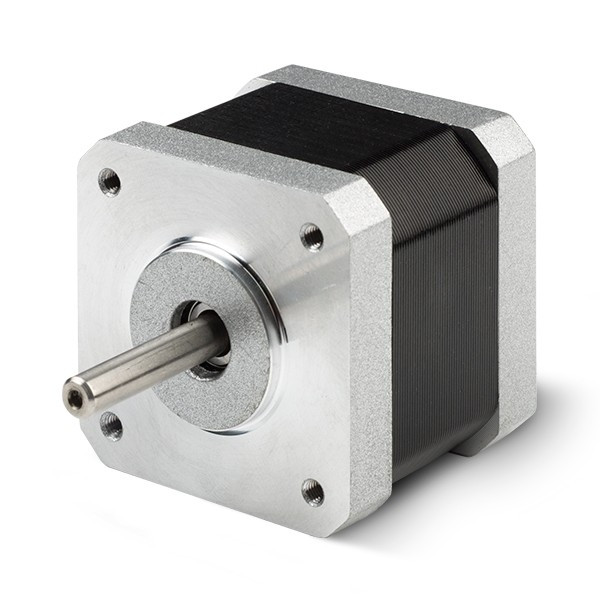

NEMA17 stepper motor 0.9 degrees per step, 48mm long (4.2kg/cm)

€18.00 (Incl. 23% VAT)
(€14.63 Excl. 23% VAT)
in stock
delivery 24h
Order now, we can ship this today!
Description
This high-resolution stepper motor is suitable for most RepRap 3D printers. By double the number of steps per revolution (400 steps), this stepper motor increases the precision of your 3D printer. The stepper motor is equipped with a connector and can be easily connected with a stepper motor cable

The following colours are used for the wiring:
a + = Black
a - = Green
B + = Red
B - = Blue

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
Specifications
Hazard class: N/A Resistance: 1.8
AWG: 24 awg Shaft: 5 mm
Brand: 123-3D Stepper shaft length: 22 mm
Current rating: 1.7 A Stepping angle: 0.9
Dimensions: 48 x 42.3 x 42.3 mm Tunnel code: N/A
Holding torque: 4.2 kg-cm Packing group: NO
Mounting hole: M3 Is liquid: no
No of leads: 4 Voltage: 3.1 v
Our item no: DMO00050
